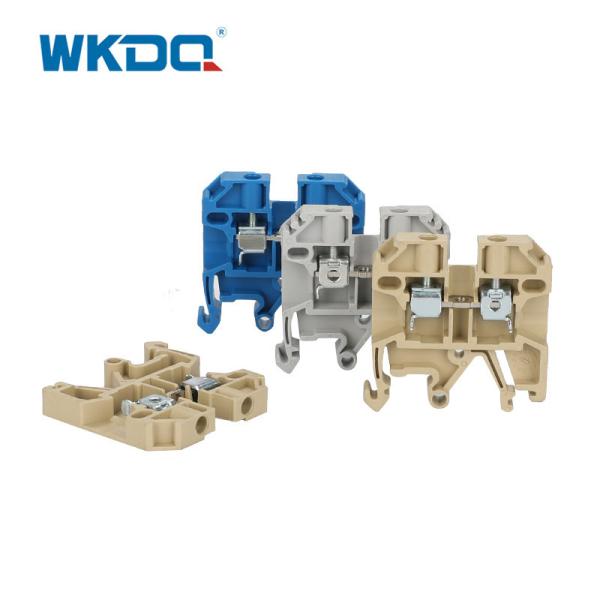

2.5mm2 35mm Wire Screw Connection Terminal Block SAK 2.5

Name: 25mm2 35mm Wire Screw Connection Terminal Block SAK 25
Brand: WJDQ
Price: 1 USD

China 2.5mm2 35mm Wire Screw Connection Terminal Block SAK 2.5 factory

Brand Name : WJDQ

Model Number : JSAK 2.5EN

Certification : CE/RoHS/CQC/ISO 9001

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : Box

Model No. : JSAK 2.5EN

Cross section,solid cable : 2.5mm²

Mounting Type : NS 35/7.5

Packing unit : 50PCS/BOX,1000PCS/CTN

Net weight : 7.03g/pc

Product color : Yellow, other color can be customized

Contact Now

SAK 2.5 Din Rail Wire Screw Terminal Blocks

1. DESCRIPTION

The JSAK series terminal blocks with clamping yoke connection make planning easer and operational safety, providing a range of different requirements.

Simple and convenience operation.

Stable and low contact resistances.

All types of accessories with high quality.

Ease of handling and a reliable electrical connection.

Made from safe and high quality material.

Reduce the installation costs and speed the wiring.

Strong contact force and excellent connection.

Versatile and vibration proof.

Made from Inflaming retarding PA 66 with Brass conductor.

Maintenance-free and vibration-proof screw connection

Low voltage drop and gas-tight contact point.

With universal foot which can be installed on Din Rail 35mm. The three different clip-on foot designs available for different types of Din Rails.

Electric potential distribution can use fixed bridges in the terminal center.

Large range of accessories: End covers, End Stops, Marker strips, fixed bridges, etc.

2.TECHNICAL PARAMETERS

Part No.	JSAK 2.5EN
Color	Yellow, other color can be customized
Length/Height/Wide (mm)	41/41/6
Connection method	Screw connection
Material	Nylon PA66
Rated Voltage/Current	800V/24A
Rated Cross section	2.5 mm²
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	7.03g/pc, 50PCS/BOX,3000PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001

3.RELATED PRODUCTS

Double Layer Terminal Blocks
DIN Rail Fuse Terminal Block
DIN Rail Terminals Spring Clamp
Earthing DIN Rail Terminal Blocks
SAK Terminal Block

2.5mm2 35mm Wire Screw Connection Terminal Block SAK 2.5
