1. DESCRIPTION

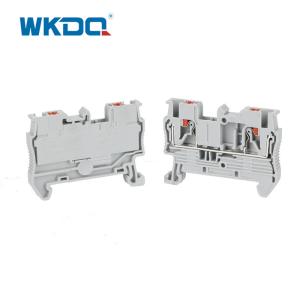

The new PUSH IN modular terminal blocks with their simple handling and compact yet clear design, allow you to benefit from faster installation times and, in turn, from much higher productivity.
Made from engineer Nylon PA 66, Nickle plated Brass.
The Push-in connection terminal blocks are characterized by easy and tool-free wiring of conductors with ferrules or solid conductors.
The compact design and front entry way make the wiring can be opened in a small space.
Simply pressing the orange push bottom to make the contact open and the conductor can be removed.No need to operate by any special tools.
Reliable and safe connection.
Easy to installation.
All types of materials are guaranteed in quality.
Vibration proof.
Automatic contact spring.
Build-in push button.
Shock resistance & Corrosion resistance.
Suitable for various applications.
Wire connections can be made without any tools.
The insertion force can be saved by 50%.
With universal foot which can be installed on Din Rail NS 35.
Accessories: End covers, End clamps, Marker strips, Plug-in bridges, etc.
2.TECHNICAL PARAMETERS
| Model Number | JPT 2.5 |
| Color | Grey, Blue, other color can be customized |
| Length/Height/Wide (mm) | 48.5/36/5 |
| Connection method | Push in connection |
| Material | Anti inflaming Nylon PA66 |
| Rated Voltage/Current | 800V/31A |
| Cross section, solid/soft Cable | 0.2-4mm² / 0.2-2.5mm² |
| Conductor Size | 24-12 AWG |
| Mounting Type | NS 35/7.5 |
| Standard | IEC 60947-7-1 |
| LOGO | WonkeDQ, OEM serivce is supporting |
| Packing Detail | 5.79g/pc, 100PCS/BOX |
| Certification | CE/RoHS/CQC/ISO 9001 |
