JUSLKG 3N Electrical Wire Terminal Blocks IEC Standard Esay Installation High Safety

Name: JUSLKG 3N Electrical Wire Terminal Blocks IEC Standard Esay Installation High Safety
Brand: WKDQ
Price: 1 USD

China JUSLKG 3N Electrical Wire Terminal Blocks IEC Standard Esay Installation High Safety factory

Brand Name : WKDQ

Model Number : JUSLKG 3N

Certification : CE/RoHS/CQC/ISO 9001

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : Box

Material : Flame resistant Nylon PA66, Nickel plated brass conductor

Logo : WONKEDQ, others can be customized

Type No. : JUSLKG 3N

Connection ways : Screw connection

Color : Yellow/Green, other color can be customized

Contact Now

JUISLKG 3N PE Terminal Block

JUSLKG 3N Electrical Wire Terminal Blocks IEC Standard Esay Installation High Safety

1. DESCRIPTION

The ground terminal blocks have very low contact resistance accordance with ground connections in wiring systems of international standards. Green-yellow color connection coding was followed by international standards.

Made from Flaming retarding PA 66,high-strength copper.

Corrosion-proof contact point.

Strong contact force and excellent connection.

Safe connection. Safe operation.

Using space-saving design.

All types of accessories with high quality.

The large wiring space enables the connection of solid and stranded conductors without ferrules, even above the nominal cross section

As well as saving space, the compact design enables user-friendly wiring in a small amount of space.

With universal foot which can be installed on Din Rail NS 35.

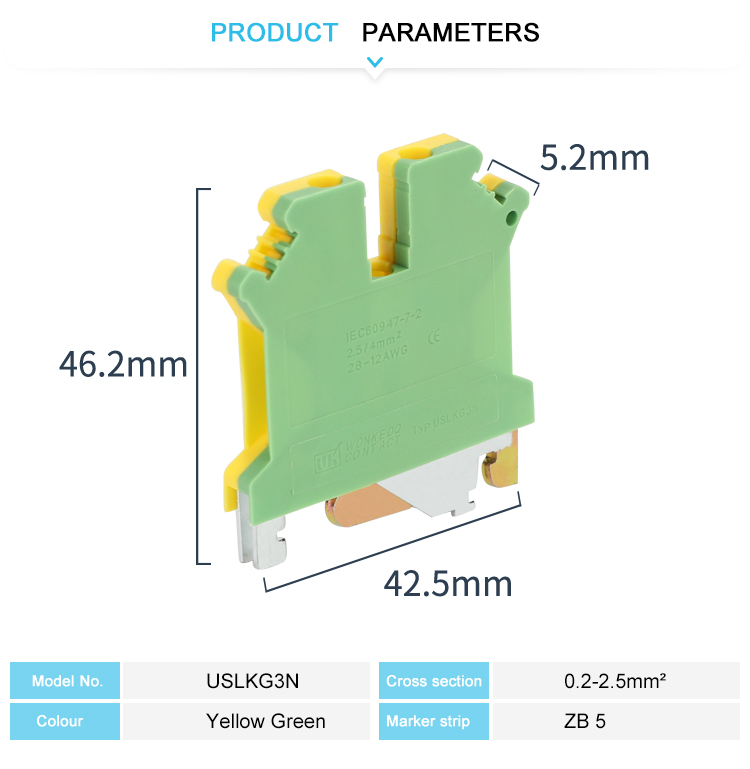

2.TECHNICAL PARAMETERS

Model No.	JUSLKG 3, Ground Modular Terminal Block
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	42.5/46.2/5.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	800V/101A
Cross section, solid/soft Cable	0.2-4 mm² /0.2-2.5 mm²
Conductor Size	24-12 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	16.13g/pc, 50PCS/BOX, 1300PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001

3. PRODUCT DETAIL

Screw DIN Rail Terminal Block
Terminal Marker Carrier
Partition Plate for Terminal Block

JUSLKG 3N Electrical Wire Terminal Blocks IEC Standard Esay Installation High Safety
