JUSLKG 6N General Electrical Terminal Connectors Universal Protective NS 35 Locking Type

Name: JUSLKG 6N General Electrical Terminal Connectors Universal Protective NS 35 Locking Type
Brand: WKDQ
Price: 1 USD

China JUSLKG 6N General Electrical Terminal Connectors Universal Protective NS 35 Locking Type factory

Brand Name : WKDQ

Model Number : JUSLKG 6N

Certification : CE, RoHs, CQC,etc

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : Box

Material : Made by Flame resistant Nylon PA66

Trademark : WONKEDQ, other brands can be designed

Color : Yellow/Green, other color can be tinted

Model No. : JUSLKG 6N

Locking Type : NS 35

Place of production : China

Connnection means : Screw connection

Rated Voltage/Current : 800V/57A

Contact Now

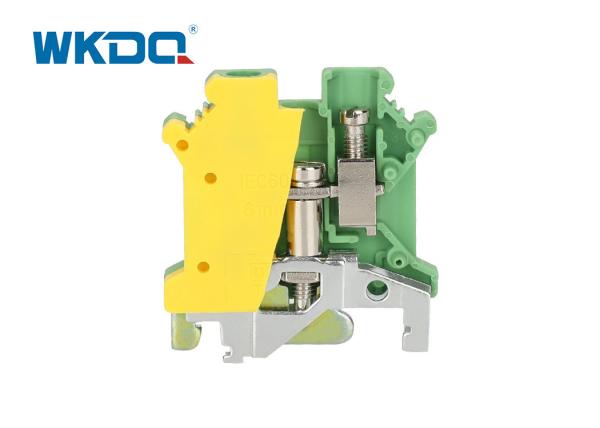

JUSLKG 6N DIN Rail Earthing Terminal Block

JUSLKG 6N General Electrical Terminal Connectors Universal Protective NS 35 Locking Type

1. DESCRIPTION

The snap-on PE foot and standardized bridges save a considerable amount of time when creating terminal strips.

It is universal in every application.They meet the highest requirements, impress with their maintenance-free conductor connection, and offer maximum flexibility with their multi-conductor connection.

Made from Flaming retarding PA 66.

Corrosion-proof contact point.

Made from safe and high quality material.

Corrosion-proof contact point.

An excellent vibration proof protection against loosening.

High-strength material,the card line is firm and prevents falling off.

With steel foot which can be installed on Din Rail NS 35.

You can connect conductors with a nominal cross section either with or without ferrules.

2.TECHNICAL PARAMETERS

Model No.	JUSLKG 6N, Ground Modular Terminal Block
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	42.5/46/8.2
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	800V/57A
Cross section, solid/soft Cable	0.2-10 mm² /0.2-6 mm²
Conductor Size	24-8 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	24.90g/pc, 50PCS/BOX, 900PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001

3.RELATE PRODUCT

Anti Flaming DIN Rail Terminal Block
High Current Ground Terminal Blocks
Spring Clamp Multi Conductor Terminal
DIN Rail Double Layer Terminal
