JUSLKG 50 Screw Terminal Block Connector High Voltage PE Ground WONKEDQ

Name: JUSLKG 50 Screw Terminal Block Connector High Voltage PE Ground WONKEDQ
Brand: WONKEDQ, other logos are avaliable
Price: 1 USD

China JUSLKG 50 Screw Terminal Block Connector High Voltage PE Ground WONKEDQ factory

Brand Name : WONKEDQ, other logos are avaliable

Model Number : JUSLKG 50

Certification : CE, RoHs, CQC,etc

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : Box

Type : Screw

Installing type : DIN Rail NS 35

Model No. : JUSLKG 50

Connection type : Screw Connection

Manufacturer : WONKEDQ

Contact Now

JUSLKG 50 High Current Ground Terminal Blocks

JUSLKG 50 Screw Terminal Block Connector High Voltage PE Ground WONKEDQ

1. DESCRIPTION

The Ground terminal blocks come with Yellow/Green color which is industry standard. Clamp mechanically on Rail by tightening middle screw. Rail serves as grounding busbar to feed ground potential to all other grounding terminals.

Universal grounding terminal.

Easy to operate.

Enclosed insulating case.

Corrosion-proof contact point.

Long durable time.

Safe and reliable connection.

Versatile and vibration proof.

All types of materials are guaranteed in quality.

Made from engineering flame retardants nylon PA66 with brass conductor.

With universal foot which can be installed on Din Rail NS 35mm.

With a single click, the ground terminal blocks can simply snap onto the DIN rail to make the PE connection.

Reliable cable connection is ensured by three-point centering of the conductor in the prismatic sleeve base.

2.TECHNICAL PARAMETER

Model No.	JUSLKG 50, Ground Modular Terminal Block
Color	Yellow/Green, other color can be customized

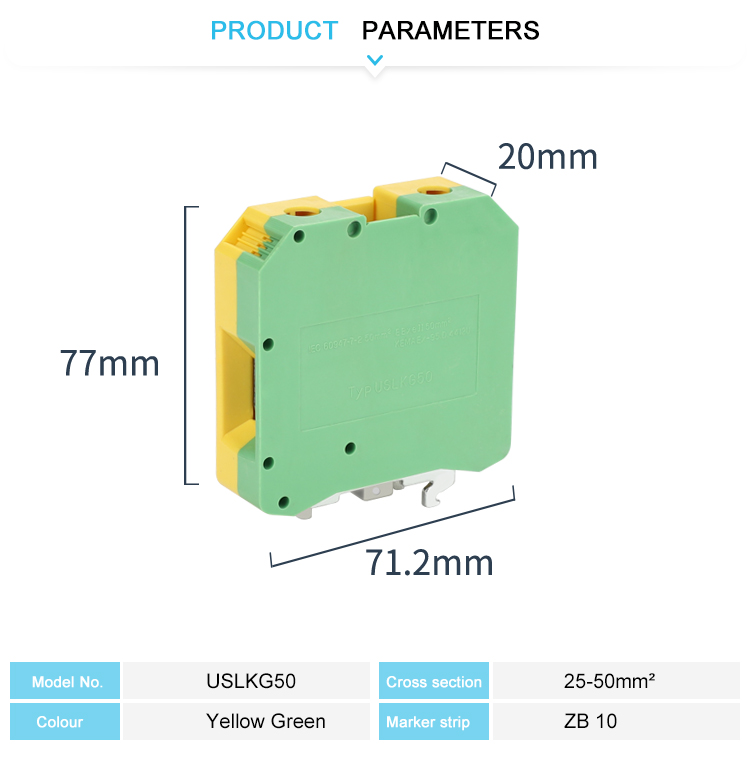

Length/Height/Wide (mm)	71.2/77/20
Connection method	Screw connection
Material	Flame resistant Nylon PA66, Nickel plated brass conductor
Rated Voltage/Current	1000V/150A
Cross section, solid/soft Cable	16-50 mm² /25-50 mm²
Conductor Size	60 AWG
Mounting Type	DIN Rail NS 35
Standard	IEC 60947-7-1
LOGO	WonkeDQ, LOGO can be customized
Packing Detail	158.75g/pc, 10PCS/BOX, 120PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001

3. RELATED PRODUCT

Anti Flaming DIN Rail Terminal Block
Protective Ground Terminal Block
Ground Modular Terminal Block
Terminal Strip Marker Carr
