284-907 Protective Spring Clamp PA66 Terminal Block Tin Plated Brass Body Front Entry DIN Rail Green Color

Name: 284907 Protective Spring Clamp PA66 Terminal Block Tin Plated Brass Body Front Entry DIN Rail Green Color
Brand: WONKEDQ
Price: 1 USD

China 284-907 Protective Spring Clamp PA66 Terminal Block Tin Plated Brass Body Front Entry DIN Rail Green Color factory

Brand Name : WONKEDQ

Model Number : 284-907

Certification : T/T, Paypal, Western Union, etc

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : Box

Length : 74

Height : 39.5

Wide : 8

Packing detail : 50PCS/BOX,1000PCS/CTN

Weight : 22.18/pc

Standard : IEC 60947-7-1

Contact Now

284-907 Din Mount Spring Terminal Blocks

284-907 Protective Spring Clamp Terminal Block Tin Plated Brass Body Front Entry

1. DESCRIPTION

The spring cage terminal blocks are designed to avoid the vibration. The Ground terminal blocks can be installed on the DIN Rail tightly without any tool.Green and yellow shell. The internationally accepted color designation for ground circuits.

Steady structure.

Fast and safe installation.

Long durable time.

Simple and convenient operation.

Shock resistance & Corrosion resistance.

Suitable for various applications.

Reduce the installation time and speed the wiring.

Made from Inflaming Nylon PA 66, Tin plated brass.

Connecting capacity from 1.5 to 10 mm.

Maintenance free vibration proof connection.

Front entry design-save time.

Universal mounting feet.

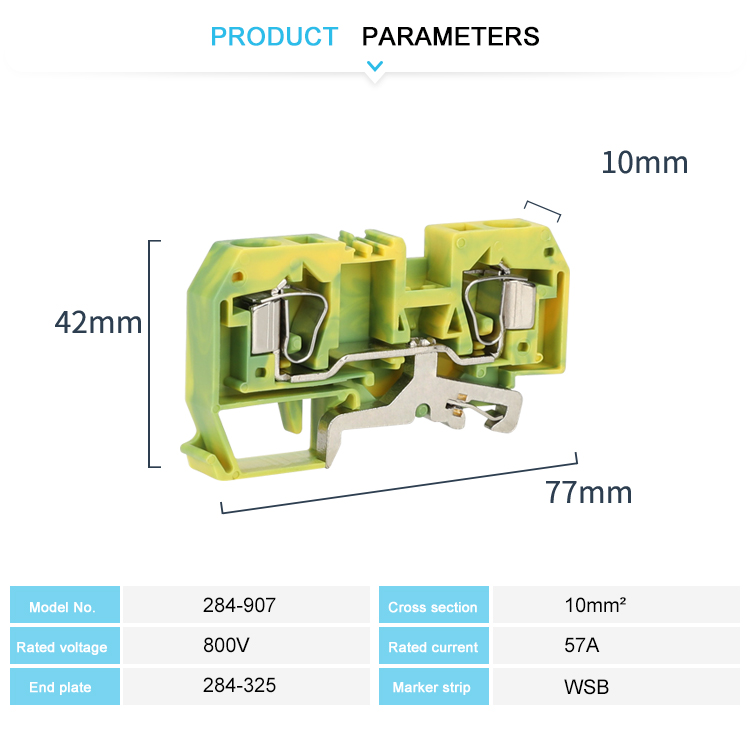

2.TECHNICAL PARAMETERS

Model Number	284-907
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	77/42/10
Connection method	Spring-cage connection
Material	Nylon PA66
Rated Voltage/Current	800V/57A
Cross section	0.2-10mm²
Conductor Size	24-8 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	WonkeDQ, Customized LOGO is accept
Packing Detail	32.25g/pc, 25PCS/BOX, 700PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001

3.RELATED PREODUCTS

Protective Ground Terminal Block
High Voltage Terminal Blocks
Double Level Spring Terminal Block
Spring Terminal Block
DIN Rail Mounted Terminal Block
35MM Aluminum DIN Rail

284-907 Protective Spring Clamp PA66 Terminal Block Tin Plated Brass Body Front Entry DIN Rail Green Color
