280-837 Spring Cage Ground Terminal Block Connectors Green Color Flaming Retarding Nylon PA66

Name: 280837 Spring Cage Ground Terminal Block Connectors Green Color Flaming Retarding Nylon PA66
Brand: WONKEDQ
Price: 1 USD

China 280-837 Spring Cage Ground Terminal Block Connectors Green Color Flaming Retarding Nylon PA66 factory

Brand Name : WONKEDQ

Model Number : 280-837

Certification : CE/RoHS/CQC/ISO 9001

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Paypal, Western Union, etc

Delivery Time : 2-7 days

Packaging Details : Box

Color of housing : Yellow/Green, colors can be ordered

Method of connection : Spring-cage connection

Length : 76

Height : 34.8

Wide : 5

Wire cross section : 0.08-2.5 mm²

Contact Now

280-837 4 Conductor Ground Terminal Block

280-837 Clip Spring Cage Connection Terminal Block Green Color Flaming Retarding Nylon

1. DESCRIPTION

The Protective Terminal Blocks have a contact foot in the bottom level,establishing direct contact to the carrier rail, also can be easily snapped onto the DIN Rails.

Green and yellow shell.the internationally accepted color designation for ground circuits.

High safety.

Vibration proof.

Steady structure.

Automatic contact spring.

Safe and reliable connection.

Safe and stable performance.

Shock resistance & Corrosion resistance.

Made from safe and high quality material.

Made from flaming retarding Nylon PA 66 with Copper conductors.

Single layer spring terminal blocks are suitable for DIN Rail 35mm.

The front entry design can allow operate in a small space.

The marking strips can be customized in different contents.

OEM Service provided.

2.TECHNICAL PARAMETERS

Model Number	280-837
Color	Yellow/Green, other color can be customized
Length/Height/Wide (mm)	76/34.8/5
Connection method	Spring-cage connection
Material	Nylon PA66
Rated Voltage/Current	800V/20A
Cross section	0.08-2.5 mm²
Conductor Size	28-12 AWG
Mounting Type	NS 35/7.5
Standard	IEC 60947-7-1
LOGO	Customized logo are supported
Packing Detail	12.96g/pc, 65PCS/BOX, 1625PCS/CTN
Certification	CE/RoHS/CQC/ISO 9001

3.RELATED PRODUCTS

Double Connect Terminal Block
Knife Disconnect Terminal Block
4 Connection Earth Terminal Block
Ground Terminal Blocks DIN Rail
Multiple Level Terminal Blocks
Electrical Cabinet Fan Filter

280-837 Spring Cage Ground Terminal Block Connectors Green Color Flaming Retarding Nylon PA66

Product Tags:

spring cage connection terminal block

spring wire terminal

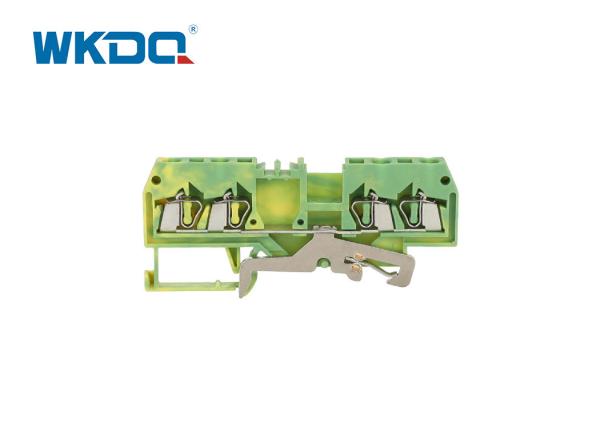

280-837 Spring Cage Ground Terminal Block Connectors Green Color Flaming Retarding Nylon PA66 Images
